i.safe MOBILE IS Accessories

IECEx-approved Ex-Zone 1/21 Accessories

Enhancing productivity and worker safety in hazardous environments.

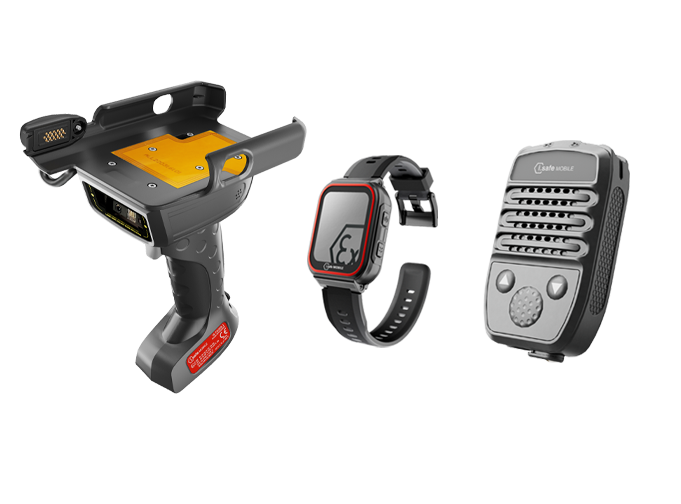

The i.safe MOBILE range of IS accessories are designed to keep productivity and efficiency a focus with seamless connectivity, while still protecting the well-being of staff in hazardous environments with IECEx-approved accessories.

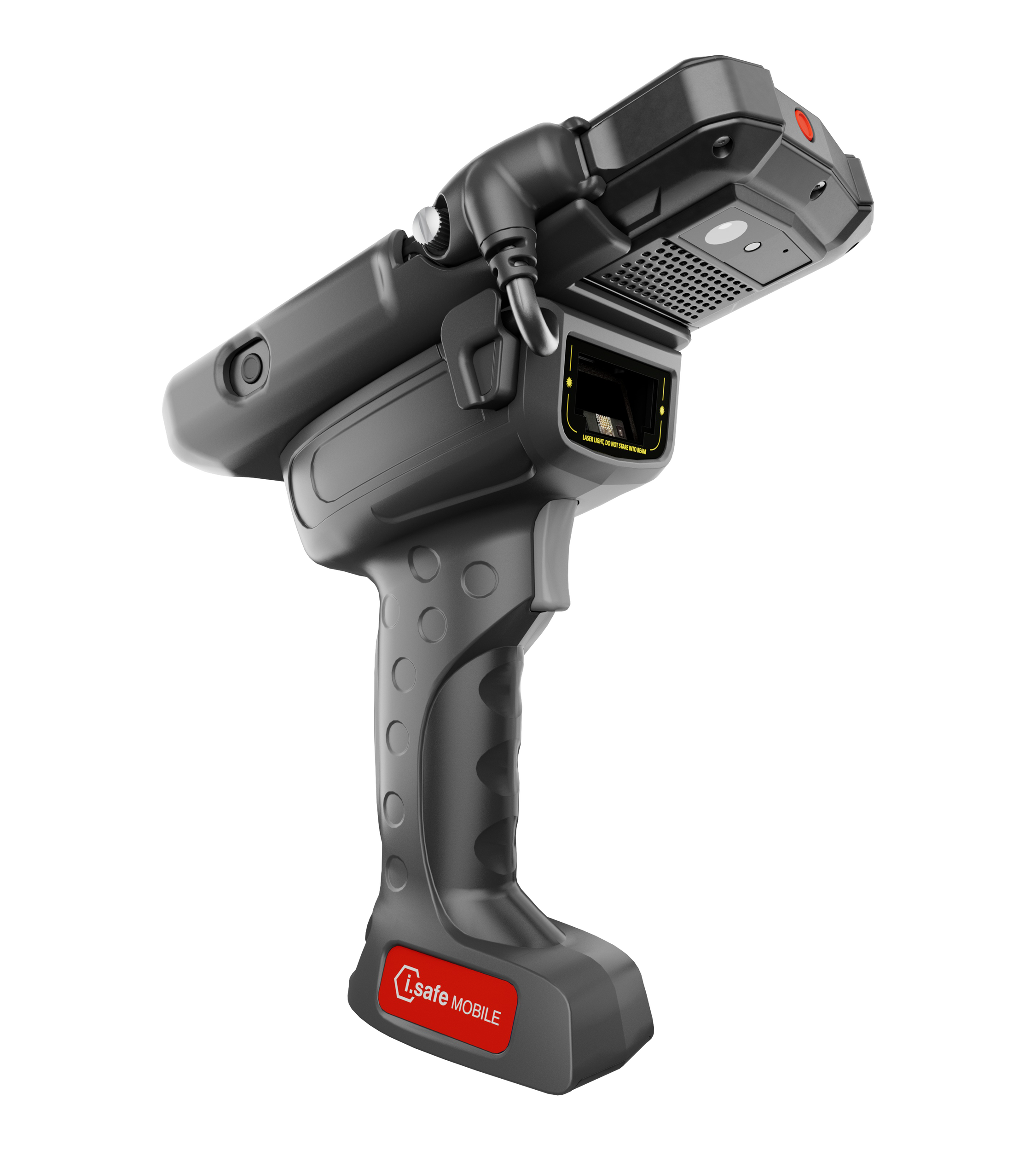

The IS-TH2ER.1 Trigger Handle (Hand-held Barcode Scanner), when used with the i.safe MOBILE IS540.1 Smartphone Zone 1/21, enables fast, accurate data acquisition in IECEx Zone 1/21 areas.

Ideal for applications in high-bay warehouses and large production areas. PRZM Intelligent Imaging technology and the green aimer, optimises barcode scanning even in difficult environment. The data is further processed directly via the i.safe MOBILE IS540.1 Smartphone Zone 1/21 connected via the ISM interface.

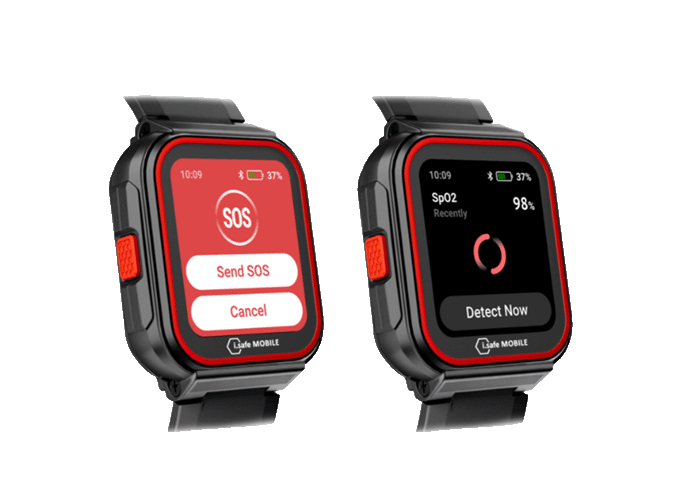

The IS-SW1.1 Smartwatch is specifically designed for industrial purposes in IECEx zones 1/21. Coupled with i.safe MOBILE devices, the IS-SW1.1 Smartwatch functions as a supplementary “hands-free” display and can record and display critical messages, hazard alarms and measured values.

In addition, the IS-SW1.1 can be used for GPS tracking, fencing, time recording/access control, and enabling emergency calls. These features all contribute to enhanced worker safety, ensuring immediate awareness and response in the field.

Note: In order to be able to use all functions of the IS-SW1.1, additional customer-specific applications from third-party suppliers are required. These are not provided by i.safe MOBILE.

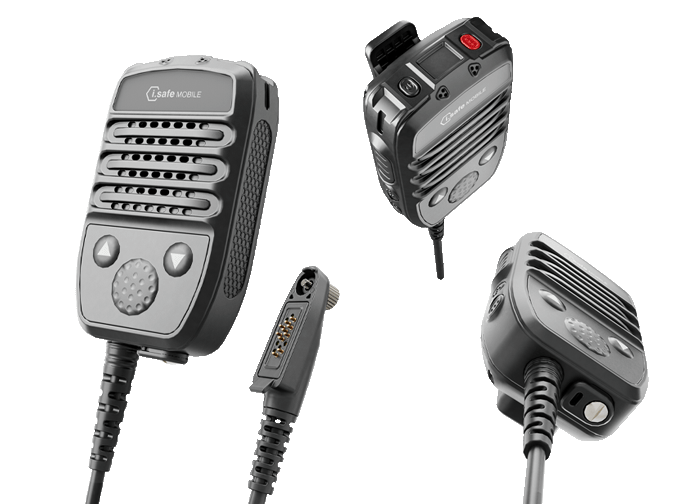

The IS-RSM3x.1 Remote Speaker Microphone (RSM) delivers clear, hands-free communication in noisy or hazardous conditions—thanks to the loudspeaker and microphones—with a rugged, intrinsically safe IECEx Ex-Zone 1/21 approved design that ensures reliable performance in demanding environments.

This RSM is either wired (IS-RSM3A.1) or Bluetooth® (IS-RSM3B.1):

• The IS-RSM3A.1 wired RSM is the ideal addition to PoC and lone worker protection applications for Zone 1/21. The lightweight device has an ergonomic design and is easy to operate even when wearing gloves.
• The IS-RSM3B.1 Bluetooth® RSM is ideal for high-mobility roles were the user needs more freedom to move, or where more discretion is required.

i.safe MOBILE IS Accessories Specifications

• Rugged build: IP68 waterproof/dustproof, MIL-STD-810H
• Operating temperature: Usable from -20°C to +55°C

IS-TH2ER.1 Trigger Handle (Hand-held Barcode Scanner)

• IECEx approval: Ex-Zone 1/21 requested
  • IECEx marking: Ex ib op is IIC T4 Gb, Ex ib op is IIIC T135°C Db
• Works with the i.safe MOBILE IS540.1 Smartphone Zone 1/21
• Scan type: ER (Extended Range), Zebra SE55 (~12m)
• Aiming: Green laser 520 nm
• Dimensions: 192.3 x 95.84 x 146 mm | 370 g
• Direct data transfer via multifunctional (ISM) interface
• Power supply via the connected device (no battery needed)
• Direct interface connection with the device (no Bluetooth® needed)

IS-SW1.1 Smartwatch Specifications

• IECEx approval: Ex-Zone 1/21
• IECEx marking: Ex ib IIC T4 Gb, Ex ib IIIC T135°C Db
• SOS function for lone worker protection
• Vibration alarm
• Collects vital data: pulse, SpO2
• Connectivity: Bluetooth® 5.1, GPS, Glonass, Beidou, Near Field Communication
• Compact size: 1.6″ display (4.064 cm) | 70g
• Sensors: accelerometer, gyroscope, magnetic, and pressure
• Strong watch strap: Tensile test bracelet: 28 kgf (tear off)

IS-RSM3x.1 Remote Speaker Microphone

• IECEx approval: Ex-Zone 1/21
• IECEx marking: Ex ib IIC T4 Gb, Ex ib IIIC T135°C Db
• Wired (IS-RSM3A.1) or Bluetooth® 5.2 BLE (IS-RSM3B.1) option
• Loudspeaker: >103dB
• Weight: 205 g (without cable)
• Dimensions: 104.26 x 64 x 32.2 mm (LxWxH)
• Customised key assignment
• Microphone: Electret condenser microphone | Omni-Directional
• Intelligent noise cancellation using a DSP controller
• Interfaces: 16-pin ISM connector (IS-RSM3A.1), 8-pin circular ISM
• Desktop charger

Organisations are responsible for ensuring an intrinsically safe solution complies with their requirements.
